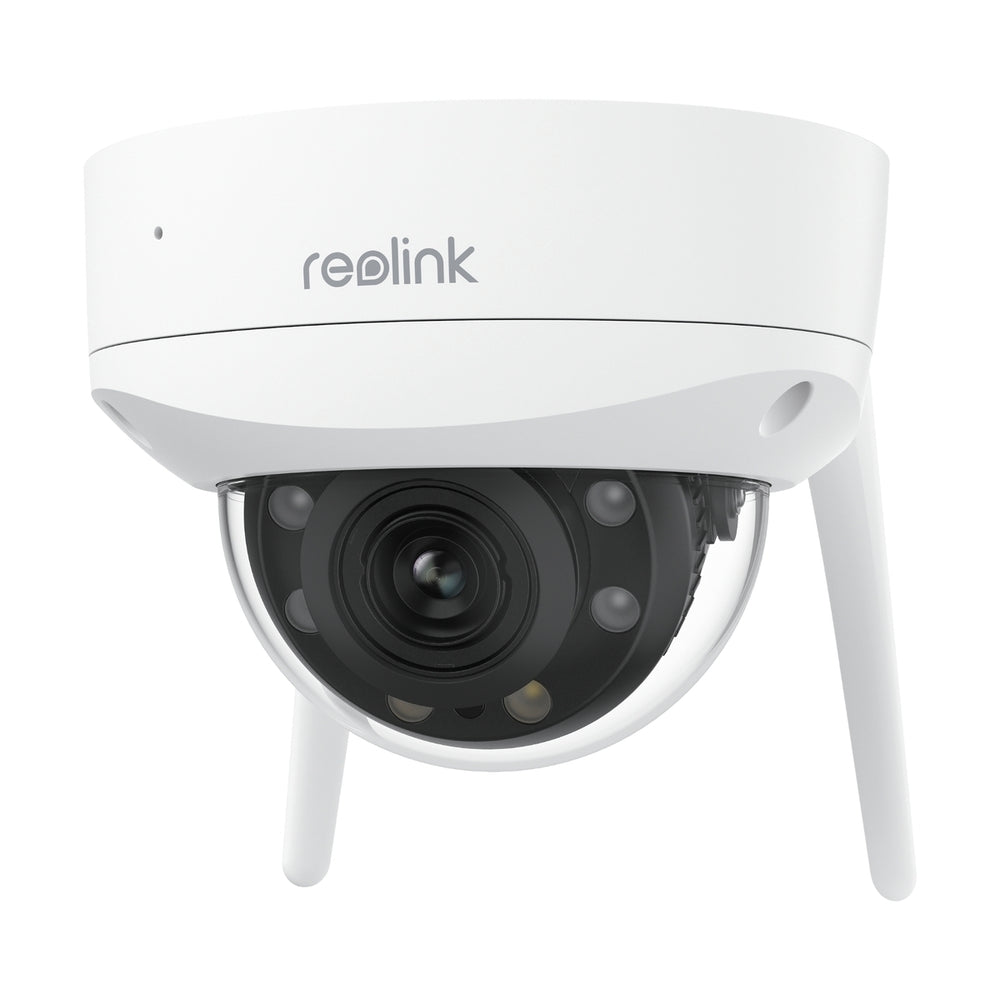

REOLINK W437 DOME IP security camera inside \\u0026 Au�en 3840 x 2160 pixel room ceiling (W437)

Transmission of seamless, delay-free 4K live views over WiFi 6, the next-generation WiFi with a 5 GHz frequency. The vandalism-proof IK10 design ensures that your cameras are resistant to external impacts. With the 5x optical zoom, even distant details are captured in uncompromising clarity. With infrared and color night vision, your property is monitored around the clock with pronounced accuracy.

Highlights:

• IK10 Vandalism protection - The robust housing protects the camera from external impacts
• Zoom in on distant details - With 5x optical zoom, you get clear details even from afar, without sacrificing sharpness
• Always connected, never offline - With 2.4/5 GHz dual-band Wi-Fi, you enjoy reliable surveillance and smooth live views everywhere
• Unleash 4K 8 MP visual brilliance - Immerse yourself in the unparalleled clarity of 4K 8 MP and experience stunningly vibrant video without missing a single detail
• Illuminate the night in vibrant colors - Experience enhanced night vision with bold colors and rich details, even in low light conditions
• Customizable security detection - Experience tailored security with person/vehicle/motion detection that delivers precise alerts and notifications based on your specific needs
• Double warning against the unwanted - With enabled siren and spotlights, this camera can effectively deter intruders and other threats to enhance your safety
• Talk anytime and from anywhere - With the two-way audio feature, you can seamlessly communicate with people in front of your camera in real-time from anywhere
• Flexible storage options - Enjoy the flexibility of multiple storage solutions with support for up to 256 GB SD cards, NVR systems, and FTP servers to meet your individual needs
• Easy Wi-Fi security system setup - With the Reolink Wi-Fi NVR, you can easily and confidently customize and set up your Wi-Fi security system

• 1x Reolink W437 WiFi Outdoor
• 1x 12V/1A Power Adapter
• 1x 4.5m Power Extension Cable
• 1x 1m Network Cable
• 1x Surveillance Sticker
• 1x Pack of Screws
• 1x Quick Start Guide
• 1x Mounting Template

Design

• Product Color: White
• International Protection Code (IP): IP67
• Form Factor: Dome
• Mounting Type: Ceiling

Performance

• Power Consumption (max.): 12 W
• DC Output Voltage: 12
• DC Output Current: 1 A
• Power Source Type: DC

Security

• Security Algorithms: WPA, WPA2
• Video Motion Detection: Yes

Operating Conditions

• Operating Temperature (TT): -10 - 55 °C
• Relative Humidity in Operation (HH): 10 - 90 %

Management Features

• Reset Button: Yes

Weight & Dimensions

• Height: 98.3 mm
• Diameter: 13.3 cm
• Weight: 754 g

Network

• Ethernet LAN: Yes
• Supported Network Protocols: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• Wi-Fi Standards: Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11a, 802.11g
• Bluetooth: No
• User Access Level: Administrator, User
• Ethernet Interface Type: Fast Ethernet
• Wi-Fi: Yes
• Network Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
• Number of Users: 20 Users
• Live View: Yes

System Requirements

• Supported Windows Operating Systems: Yes
• Supported Mac Operating Systems: Yes
• Supported Mobile Operating Systems: Android, iOS

Performance

• Type: IP Security Camera
• Infrared (IR) Cut Filter: Yes
• Integrated Light: Yes
• Connectivity Technology: Wired and Wireless
• Color Temperature: 6000 K
• Supported Placement: Indoor and Outdoor
• Virtual Assistant: Google Assistant

Package Contents

• Mounting Kit: Yes
• Number of Cameras: 1
• Screws Included: Yes

Audio

• Built-in Speaker(s): Yes
• Audio System: 2-Way
• Built-in Microphone: Yes

Storage

• Compatible Memory Cards: MicroSD (TransFlash)
• Built-in Hard Drive: No
• Maximum Memory Card Size: 256 GB
• Card Reader Integrated: Yes

Connections & Interfaces

• Ethernet LAN (RJ-45) Ports: 1
• DC Input Socket: Yes

Camera

• Lens Viewing Angle, Horizontal: 31 - 105
• Lens Viewing Angle, Vertical: 17 - 55

Image Sensor

• Size of Optical Sensor: 25.4 / 2.8 mm (1 / 2.8)
• Sensor Type: CMOS
• Number of Sensors: 1

Video

• Supported Graphic Resolutions: 3840 x 2160
• Supported Video Formats: H.265
• Maximum Resolution: 3840 x 2160 Pixels
• Total Megapixels: 8 MP
• Bitrate: 64 Kbps - 6144 Kbps
• Frame Rate: 15 fps
• Video Recording: Yes
• Video Streaming: Yes
• Supported Video Modes: 2160p
• Video Compression Formats: H.265

Night Vision

• LED Type: IR
• Night Vision Range: 30 m
• Number of Illumination LEDs: 4
• Infrared Wavelength: 850 nm
• Night Vision: Yes

Lens System

• Focal Length Range: 2.7 - 13.5 mm
• Zoom Function: Yes
• Maximum Aperture: 1.6
• Optical Zoom: 5x
• Number of Lenses: 1
