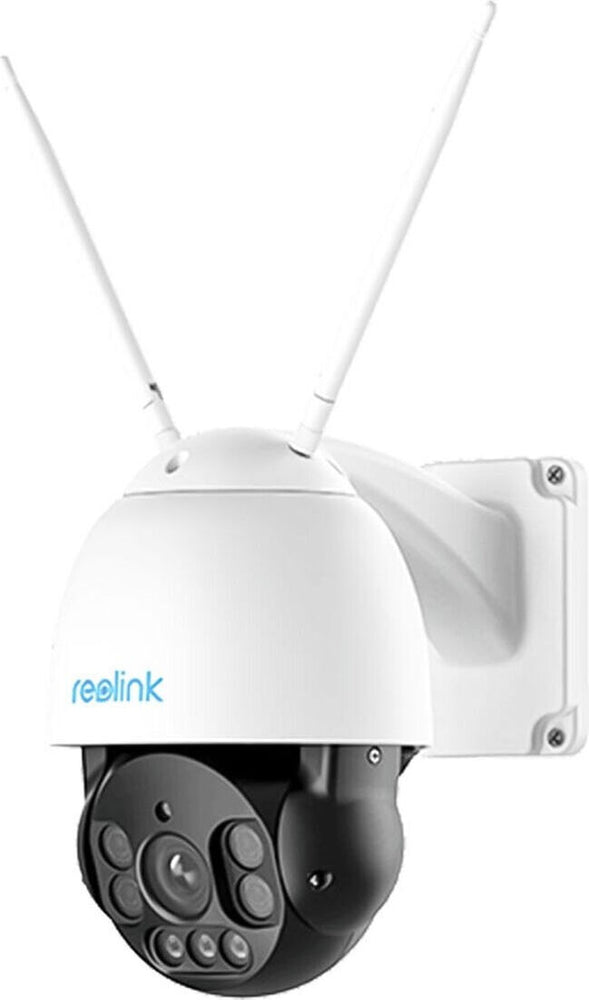

REOLINK RLC-523WA

Reolink RLC-523WA Wi-Fi surveillance camera WLAN Google Assistant Night Vision Zoom

Smothering burglary in the bud
The built-in lights and siren are motion-activated or controlled via the Reolink app to deter unwanted intruders.

2-Way Audio brings smooth conversation
With the built-in microphone and speaker, you can not only listen but also talk to your children, employees, and mail carriers, or warn suspicious strangers.

Superior pan, tilt & auto-tracking
With 360-degree pan & 90-degree tilt, the 5MP IP camera better detects moving people and vehicles and allows automatic tracking of them. This provides more clues about what an intruder has done in case of doubt.

Flawless 5MP Super HD
With a superior 5MP resolution, the Wi-Fi camera delivers clearer and more detailed images & videos than 2MP or 1080p cameras.

Brilliant night vision; farther & more vivid
Thanks to the infrared LEDs and spotlight LEDs, the 5MP camera provides color videos even in complete darkness with outstanding detail at distances of up to 60 meters. Enjoy a worry-free night with the RLC-523WA!

Powerful zoom, fast focus
With the eye-catching 5x optical zoom and autofocus feature, you can zoom in for better detection of distant objects via the Reolink app/client without compromising high-resolution image quality.

Dual-band Wi-Fi; stronger signals
This battery-powered camera is available in two frequencies, 2.4 GHz and 5 GHz, to enhance the performance of your camera network.

Weatherproof for outdoor use
The aluminum housing makes the Reolink RLC-523WA camera waterproof and robust. It works perfectly both inside and outside your home, even in harsh weather conditions.

Highlights

• Person & vehicle recognition
• Pan, tilt & zoom
• 2.4/5 GHz dual-band Wi-Fi
• Color night vision
• 2-way audio

Video & Audio

• Image sensor: 1/2.7' CMOS sensor
• Video resolution: Standard: 2560 x 1920 (5.0 Megapixels) at 20 fps
• Lens: f=2.7-13.5mm F=1.6-3.3, zoom lens
• Video compression: H.264
• Field of view: Horizontal: 96 - 27, Vertical: 69 - 21
• Day/Night mode: IR-Cut filter with automatic switching
• Infrared night vision: Up to 60 meters (190ft) (LED: 4 pieces/28 mil/850 nm)
• Color night vision: Spotlight: 3 pieces/5700K/945 Lumens)
• Audio: Two-way audio

Power

• DC power: DC 12.0V=2A, <24W

Interface

• Power: DC power input
• System: Reset button
• Ethernet: 1 10M/100Mbps RJ45
• Storage: MicroSD card slot (Max. 256GB)
• Audio: Built-in microphone & speaker

Pan & Tilt

• Pan & tilt range: Pan: 360, Tilt: 0 - 90
• Pan speed: 2.5 - 150/ sec. (adjustable)
• Tilt speed: 1.5 - 60/ sec. (adjustable)
• Preset: 64
• Course: 1 course, up to 16 preset points per course
• Auto-tracking: Supported
• Power failure recovery: Supported

Wi-Fi

• Wi-Fi standard: IEEE 802.11a/b/g/n
• Operating frequency: 2.4 GHz / 5 GHz
• Wi-Fi security: WPA-PSK/WPA2-PSK

Software & Function

• Frame rate: Mainstream: 2fps - 30fps (standard: 20fps), Substream: 4fps - 15fps (standard: 10fps)
• Bitrate: Mainstream: 1024Kbps -8192Kbps (standard: 4096Kbps), Substream: 64Kbps - 512Kbps (standard: 256Kbps)
• Browser: Edge, Chrome, Firefox, Safari
• Operating system: PC: Windows, Mac OS; Smartphone: iOS, Android
• Smart alerts: Motion/Person/Vehicle detection
• Recording mode: Motion recording (default); Scheduled recording; 24/7 recording
• Max. user access: 20 users (1 admin account & 19 user accounts);
• Works with: Google Assistant

Operating environment

• Temperature: Operating temperature: -10C - +55C (14F - 131F)
• Humidity: Operating humidity: 10% - 90%
• Weatherproof: IP66

Dimensions & Weight

• Dimensions: Φ 136 x 201 mm
• Weight: 1.8 kg

Design

• International protection code (IP):IP66
• Form factor:Dome
• Weatherproof:Yes
• Product color:White
• Mounting type:Wall

Power supply

• DC output voltage:12
• Power consumption (typical):24 W
• Power supply type:DC
• DC output current:2 A

Security

• Security algorithms:WPA2-PSK,WPA-PSK
• Video motion detection:Yes

Management features

• Reset button:Yes

Weight and dimensions

• Weight:1.8 kg
• Width:201 mm
• Diameter:13.6 cm

Network

• User access level:Administrator, User
• Ethernet interface type:Fast Ethernet
• Wi-Fi:Yes
• Supported network protocols:HTTP, HTTPS, SSL, TCP/IP, UDP, UDNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P.
• Ethernet LAN:Yes
• Wi-Fi standards:802.11b,802.11a,802.11g,Wi-Fi 4 (802.11n)
• Works with Google Assistant:Yes
• Number of users:20 users
• Bluetooth: No

System requirements

• Supported mobile operating systems:Android, iOS
• Supported Mac operating systems:Yes
• Supported Windows operating systems:Yes

Performance

• Day/Night mode:Yes
• PTZ control:Yes
• Type:IP security camera
• Connectivity technology:Wired
• Auto tracking:Yes
• Preset points:Yes
• Infrared (IR) cut filter:Yes
• Maximum operating distance:60 m
• Supported placement:Indoors and Outdoors

Packaging content

• Screws included:Yes
• Quick start guide:Yes
• Power adapter included:Yes
• Cable included:LAN (RJ-45)
• Number of cameras:1

Audio

• Audio system:2-Way
• Built-in microphone:Yes

Storage

• Maximum memory card size:256 GB
• Built-in hard drive:No
• Compatible memory cards:MicroSD (TransFlash)
• Card reader integrated:Yes

Connections & Interfaces

• Ethernet LAN (RJ-45) ports:1

Camera

• Lens viewing angle, horizontal:96
• Lens viewing angle, vertical:69
• Panning range:0 - 360
• Tilt speed:60 /sec.
• Panning speed:150 /sec.
• Camera pan control:Yes
• Camera tilt control:Yes
• Tilt angle range:0 - 90

Additional features

• Supported browsers:IE, Edge, Chrome, Firefox, Safari

Image sensor

• Sensor type:CMOS
• Size of optical sensor:25.4 / 2.7 mm (1/2.7)

Video

• Total megapixels:5 MP
• Supported video formats:H.264
• Frame rate:20 fps
• Video streaming:Yes
• Maximum resolution:2560 x 1920 pixels
• Video recording:Yes

Night vision

• Night vision distance:60 m
• LED type:IR
• Night vision:Yes

Lens system

• Maximum aperture:3.3
• Minimum aperture:1.6
• Focal length range:2.7 - 13.5 mm
• Zoom capability: Yes
• Autofocus: Yes

Type:

IP Security Camera

Support for positioning:

Indoor & Outdoor

Transmission method:

Wired

PTZ control:

Yes

Auto search:

Yes

Preset points:

Yes

Maximum working distance:

60 m

Day/Night mode:

Yes

Infrared (IR) cut filter:

Yes

Mounting type:

Wall

Product color:

White

Form factor:

Dome

International protection class (IP code):

IP66

Weatherproof:

Yes

Camera pan control:

Yes

Camera tilt control:

Yes

Viewing angle (horizontal):

96

Viewing angle (vertical):

69

Tilt angle range:

0 - 90

Tilt speed:

60 /second

Panning range:

0 - 360

Webcam - pan speed:

150 /second

Sensor type:

CMOS

Size of image sensor:

25.4 / 2.7 mm (1 / 2.7 inch)

Zoom capability:

Yes

Autofocus:

Yes

Maximum aperture:

3.3

Minimum aperture:

1.6

Focal length range:

2.7 - 13.5 mm

Night vision:

Yes

Night vision distance:

60 m

LED type:

IR

Maximum resolution:

2560 x 1920 pixels

Total megapixels:

5 MP

Supported video formats:

H.264

Video recording:

Yes

Up to 30 frames per second:

20 fps

Video streaming:

Yes

Transmission speed:

Mainstream: 1024 8192 Kbps (standard: 4096 Kbps) Substream: 64 Kbps-512 Kbps (standard: 256 Kbps)

Audio system:

2-Way

Built-in microphone:

Yes

Built-in Ethernet port:

Yes

Wi-Fi:

Yes

Ethernet interface type:

Fast Ethernet

Supported network protocols:

HTTP, HTTPS, SSL, TCP / IP, UDP, UDNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P.

Wi-Fi standards:

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Number of users:

20 users

User access level:

Administrator, User

Works with Google Assistant:

Yes

Integrated card reader:

Yes

Compatible memory cards:

MicroSD (TransFlash)

Max. memory card size:

256 GB

Number of Ethernet LAN connections (RJ-45):

1

Video motion detection:

Yes

Supported security algorithms:

WPA-PSK, WPA2-PSK

Reset button:

Yes

Power source:

DC

Power consumption (standard operation):

24 W

DC output volts:

12

DC output current:

2 A

Supports Windows operating systems:

Yes

Supports Mac operating systems:

Yes

Supported mobile operating systems:

Android, iOS

Width:

201 mm

Diameter:

13.6 cm

Weight:

1.8 kg

Number of cameras:

1

Included cables:

LAN (RJ-45)

Screws included:

Yes

AC power adapter:

Yes

Quick start overview:

Yes

Supported browser:

IE, Edge, Chrome, Firefox, Safari

• Color:
  • White
  • Black
• Included:
  • LAN (RJ-45)
  • AC Adapter
  • Screws
  • RJ45 Cable
• Power source:
  • DC
  • DC
• Type: IP Security Camera
• Resolution (px): 2560 x 1920 px
• Features:
  • Tilt control
  • Built-in microphone
  • Weather-resistant
  • Includes installation manual
  • Card reader
  • Reset button
• Connectivity:
  • Wi-Fi
  • Wi-Fi 4 (802.11n)
• Mounting: Wall-mountable
• Voltage: 12 V
• Number of cameras: 1
• IP classification: IP66
• Function: Night vision
• Connections:
  • RJ45
  • Ethernet LAN
• Compatible:
  • Windows
  • Mac OS
  • Android, iOS
  • WPA,WPA-PSK,WPA2-PSK
• Current strength: 2 A
• Format: H.264
• Technology: 2-Way CrossFireX
• Compatible memory cards: MicroSD (TransFlash)
• Not included: Bluetooth

Nothing escapes your eye

The Reolink RLC-523WA can effectively detect and record human & vehicle movements while simultaneously sending smart alerts to you. However, no further subscription fees are required with the new advanced algorithms.

Product Features:

• Person & vehicle recognition
• Pan, tilt & zoom
• 2.4/5 GHz dual-band Wi-Fi
• Color night vision
• 2-way audio

• Person & vehicle recognition
• Pan, tilt & zoom
• 2.4/5 GHz dual-band Wi-Fi
• Color night vision
• 2-way audio

The Reolink RLC-523WA 5 MP Wi-Fi PTZ dome surveillance camera with a 5x zoom lens, motion, person, and vehicle recognition, integrated lighting and siren The Reolink RLC-523 5 MP PTZ dome surveillance camera features a super HD resolution of 2560x1920, and with clearly higher image sharpness, all image details become visible. The 4 infrared LEDs and 3 spotlights enable particularly good day and night vision up to 60 meters. The Reolink RLC-523WA 5 MP PTZ camera has a motorized 5x zoom lens with autofocus feature and provides you with an optimal field of view with a horizontal viewing angle of 96 - 27 and vertical of 69 - 21. The powerful 2.7-13.5 mm zoom lens with IR-Cut can zoom in on distant objects. With its 360-degree pan function, the Reolink RLC-523WA surveillance camera can rotate at high speed, ensuring reliable observation and monitoring of your private home or business. With the Reolink app or client, important events are always recognizable in live streaming with improved motion, auto-tracking, and person recognition on your mobile device. To store recordings, you can use a microSD card* or a Reolink NVR recorder* or set up an FTP server. *separate accessories To focus on important events, you can customize specific zones and sensitivity for motion detection. The built-in lights and siren are motion-activated and controlled via the Reolink app. This deters unwanted visitors. Wherever you are, you can remotely access your Reolink RLC-523WA PTZ camera and watch a live stream. Thanks to dual-band Wi-Fi (2.4 / 5 GHz), the wireless connection is comfortable, stable, and easy to set up. The powerful antennas enable a range of network signals of up to 50 meters. The RLC-523WA 5 MP PTZ IP dome camera features a sturdy aluminum housing and offers waterproof protection class IP66. Thus, it is ideal for outdoor use and works flawlessly even in harsh weather conditions. The firmware updates for the RLC-523WA dome surveillance camera are very easy to install. Download the latest firmware from the firmware page and update it via the client software.

Specifications | Type: IP security camera | Support for positioning: Indoor & Outdoor | Transmission technology: Wired | Feature: PTZ control | Feature: Auto-search | Feature: Preset points | Maximum working distance: 60 m | Feature: Day/Night mode | Feature: Infrared (IR) cut filter | Design | Form factor: Dome | Mounting type: Wall | Product color: White | International protection class (IP code): IP66 | Feature: Weatherproof | Camera | Feature: Camera pan control | Feature: Camera tilt control | Viewing angle (horizontal): 96 | Viewing angle (vertical): 69 | Tilt angle range: 0 - 90 | Tilt speed: 60 /second | Pan range: 0 - 360 | Webcam - pan speed: 150 /second | Image sensor | Size of image sensor: 25.4 / 2.7 mm (1 / 2.7 inch) | Sensor type: CMOS | Lens | Feature: Zoom capability | Feature: Autofocus | Maximum aperture: 3.3 | Minimum aperture: 1.6 | Focal length range: 2.7 - 13.5 mm | Night vision | Feature: Night vision | Night vision distance: 60 m | LED type: IR | Video | Maximum resolution: 2560 x 1920 pixels | Total megapixels: 5 MP | Supported video formats: H.264 | Feature: Video recording | Up to 30 frames per second: 20 fps | Feature: Video streaming | Audio | Audio system: 2-Way | Feature: Built-in microphone | Network | Feature: Built-in Ethernet port | Ethernet interface type: Fast Ethernet | Supported network protocols: HTTP, HTTPS, SSL, TCP / IP, UDP, UDNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P. | Feature: Wi-Fi | Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) | Number of users: 20 users | User access level: Administrator, User | Feature: Works with Google Assistant | Storage media | Feature: Integrated card reader | Compatible memory cards: MicroSD (TransFlash) | Max. memory card size: 256 GB | Connections and | 1

Reolink RLC-523WA. Type: IP security camera, support for positioning: Indoor & Outdoor, transmission technology: Wired. Form factor: Dome, mounting type: Wall, product color: White. Viewing angle, horizontal: 96, viewing angle, vertical: 69, tilt angle range: 0 - 90. Sensor type: CMOS, CCD sensor size: 25.4 / 2.7 mm (1 / 2.7 inch). Focal length range: 2.7 - 13.5 mm

RLC-523WA security camera dome IP security camera Indoor & Outdoor 2560 x 1920 pixels Wall

Reolink RLC-523WA - Network surveillance camera - PTZ - Outdoor - weatherproof - Color (Day&Night) - 5 MP - 2560 x 1920 - motorized - Audio - wireless - Wi-Fi - LAN 10/100 - H.264 - DC 12 V
