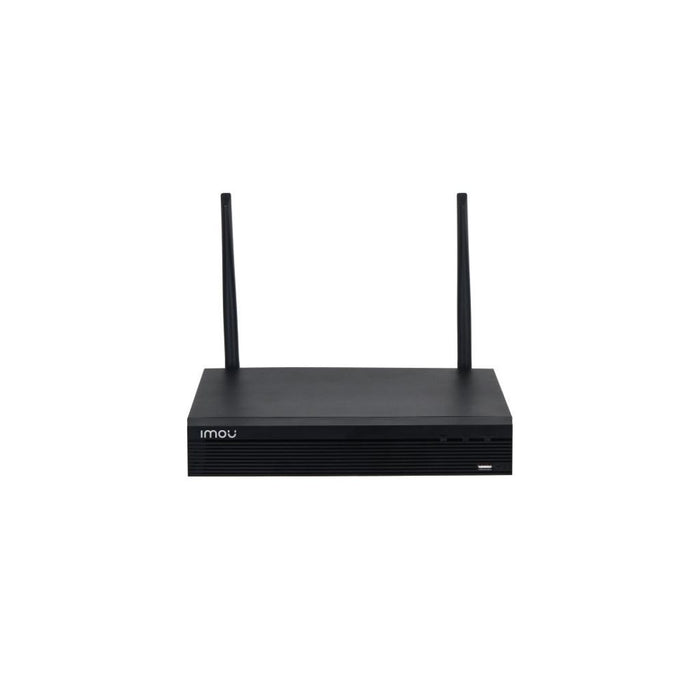

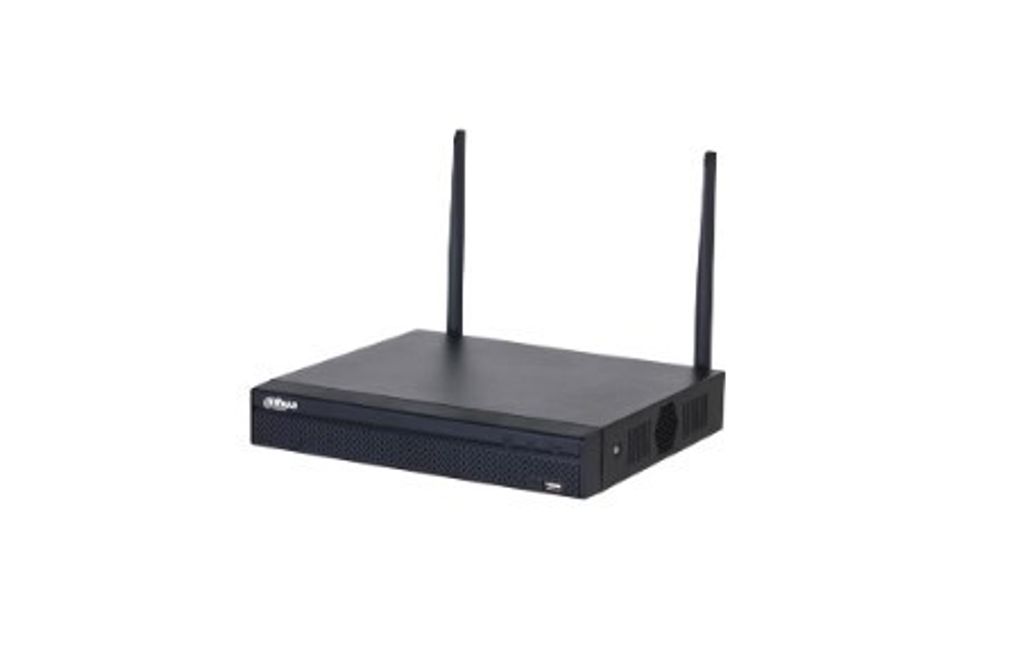

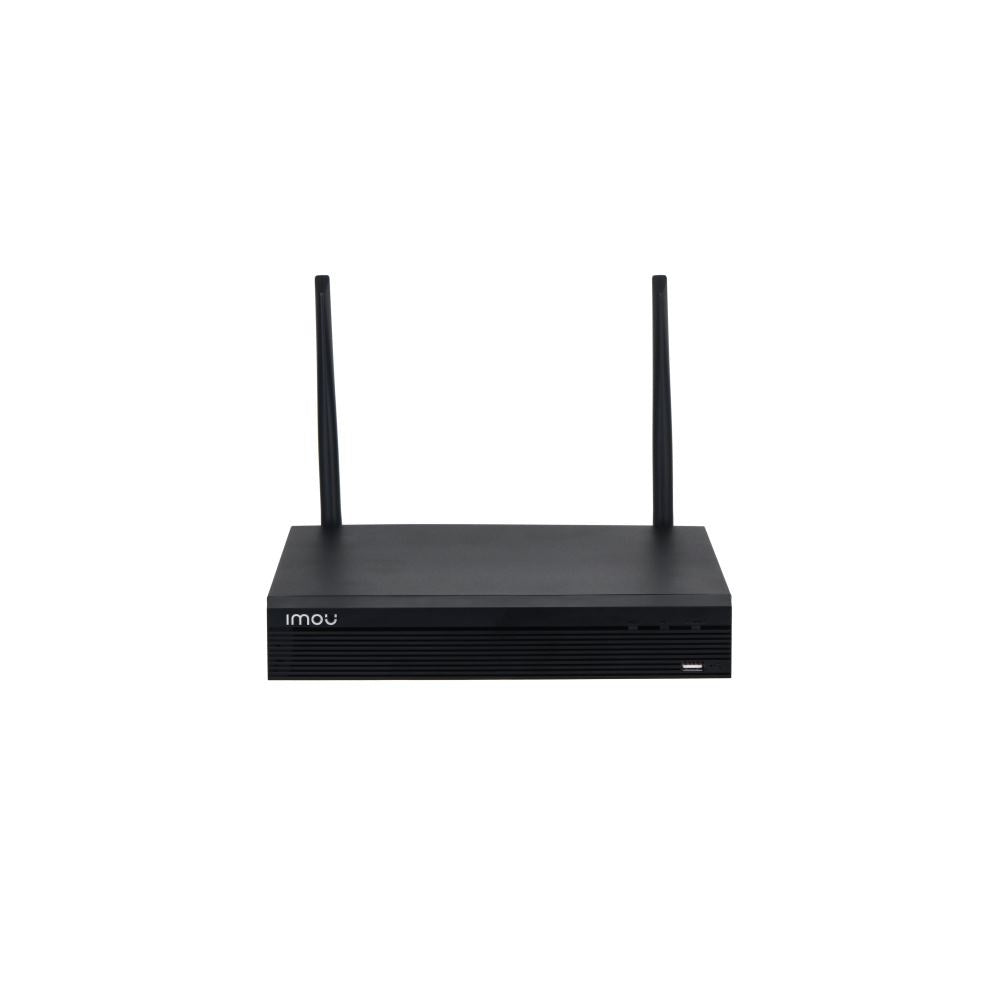

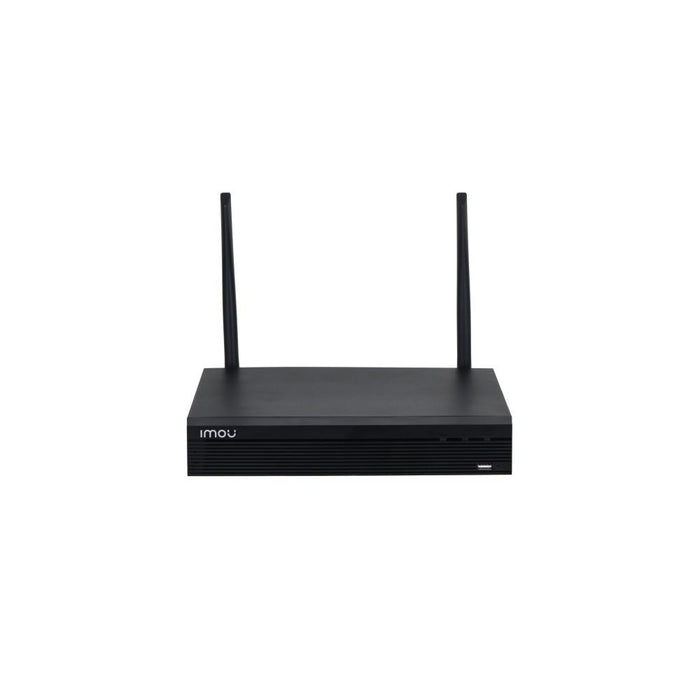

IMOU WLAN recorder NVR1108HS-W-S2

LEDs: Network, Power, HDD
EAN: 6939554982897
Backup Function: Yes
DC Output Socket: Yes

Case Depth: 117 mm
Product Depth: 247.3 mm
Number of Ethernet LAN Ports (RJ-45): 1
Number of HDMI Ports: 1
Hard Drive Interface: SATA
Manufacturer Code: A0033006
Audio Codecs: PCM; G711A; G711U; G726
Product Color: Black
Number of USB 2.0 Ports: 2
Number of Installed Hard Drives: 1
Maximum Storage Capacity: 16 TB
Rack Mounting Options: Yes
M-ti-Screen: Yes
Operating Voltage: 12 V
Support for Mobile Operating Systems: Android, iOS
Supported Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P
Supported Browsers: Chrome; IE 9 or higher; Firefox
Rack Capacity: 1U
Output Current: 1.5 A
Ethernet LAN Data Transfer Rate: 100 Mbit/s, 10 Mbit/s
Embedded Processor: Yes
Video Codecs: Smart H.265; H.265; Smart H.264; H.264; MJPEG
Case Width: 372 mm
Product Width: 260.3 mm
Playback Modes: Pause, Play, Stop
Video Recording Modes: 720p, 1080p
Product Weight: 824 g
Weight including Packaging: 1.56 kg
Video Channels: 8 Channels
Video Motion Detection: Yes
RCA Audio Outputs: 1
VGA (D-Sub) Outputs: 1
HDMI Output: Yes
Packaging Height: 308 mm
Product Height: 44.7 mm
Installed Operating System: Embedded LINUX
Temperature Range (Operating): -10 - 45 C
Relative Humidity Range: 10 - 93%
Audio RCA Connections: 1

Processor

• Embedded Processor: Yes

Features

• LED Indicators: Power, Network, Hard Drive
• Product Color: Black
• Rack Mount: Yes
• Rack Capacity: 1U

Performance

• Output Current:1.5 A
• Output Voltage:12 V

Operating Conditions

• Relative Operating Humidity (RH):10 - 93 %
• Operating Temperature (OT): -10 - 45 C

Weight & Dimensions

• Weight:824 g
• Height:44.7 mm
• Packaging Height:308 mm
• Packaging Weight: 1.56 kg
• Packaging Depth: 117 mm
• Width: 260.3 mm
• Packaging Width: 372 mm
• Depth: 247.3 mm

System Requirements

• Supported Mobile Operating Systems: iOS, Android
• Supported Browsers: Chrome; IE 9 or higher; Firefox

Performance

• Video Motion Detection: Yes
• Video Input Channels: 8 Channels
• Audio Codecs: PCM; G711A; G711U; G726
• Video Recording Modes: 720p, 1080p
• Backup Function: Yes
• Video Codecs: Smart H.265; H.265; Smart H.264; H.264; MJPEG
• Multi-Screen: Yes
• Installed Operating System: Embedded LINUX
• Playback Modes: Pause, Play, Stop

Storage

• Maximum Storage Capacity: 16 TB
• HDD Interface: SATA
• Number of Installed Hard Drives: 1

Connections & Interfaces

• Number of USB 2.0 Ports: 2
• Ethernet LAN Data Rates: 100, 10
• Number of HDMI Ports: 1
• Audio RCA Inputs: 1
• Supported Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P
• DC Input Socket: Yes
• VGA (D-Sub) Output Ports: 1
• Ethernet LAN (RJ-45) Ports: 1
• HDMI Output: Yes
• Audio RCA Outputs: 1

Video Input Channels:

8 Channels

Video Recording Modes:

720p, 1080p

Video Motion Detector:

Yes

Multi-Screen:

Yes

Installed Operating System:

Embedded LINUX

Backup Function:

Yes

Video Codec:

Smart H.265; H.265; Smart H.264; H.264; MJPEG

Audio Codec:

PCM; G711A; G711U; G726

Playback Modes:

Pause, Play, Stop

Number of Installed HDDs:

1

Max. Storage Capacity:

16 TB

HDD Interface:

SATA

Number of Ethernet LAN Ports (RJ-45):

1

Ethernet LAN Data Transfer Rates:

10,100 Mbit/s

HDMI Output:

Yes

Number of HDMI Ports:

1

VGA (D-Sub) Output Connections:

1

Number of USB 2.0 Connections:

2

Audio RCA Inputs:

1

Audio RCA Outputs:

1

DC Connector:

Yes

Supported Network Protocols:

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P

Rack Mount:

Yes

Rack Capacity:

1U

LED Indicators:

HDD, Network, Power

Product Color:

Black

Embedded Processor:

Yes

Output Current:

1.5 A

Output Voltage:

12 V

Supported Mobile Operating Systems:

Android, iOS

Supported Browser:

Chrome; IE 9 or later; Firefox

Operating Temperature:

-10 - 45 C

Relative Humidity in Operation:

10 - 93%

Width:

260.3 mm

Depth:

247.3 mm

Height:

44.7 mm

Weight:

824 g

Packaging Width:

372 mm

Packaging Depth:

117 mm

Packaging Height:

308 mm

Package Weight:

1.56 kg

IMOU Wireless Recorder 8 Ch. | Manufacturer No.: NVR1108HS-W-S2im | EAN: 6939554982897 | Product Type: New | WLAN Recorder 8 Ch. The PoE recorder is designed for recording videos and securing your home or business. Imou cameras and smart home devices connected to the Imou Cloud have the highest encryption standard, which is at the bank level. Internally, Imou invests in a security team that regularly conducts attack attempts and implements the latest and most advanced security technologies.

VIDEO RECORDER NRV WIFI IMOU NVR1108HS-W-S2VIDEO RECORDER NRV WIFI IMOU NVR1108HS-W-S21080P 8 CHANNELS H265+ HDMI+VGA WIFI N+ETHERNET NVR1108HS-W-S2IMOU
