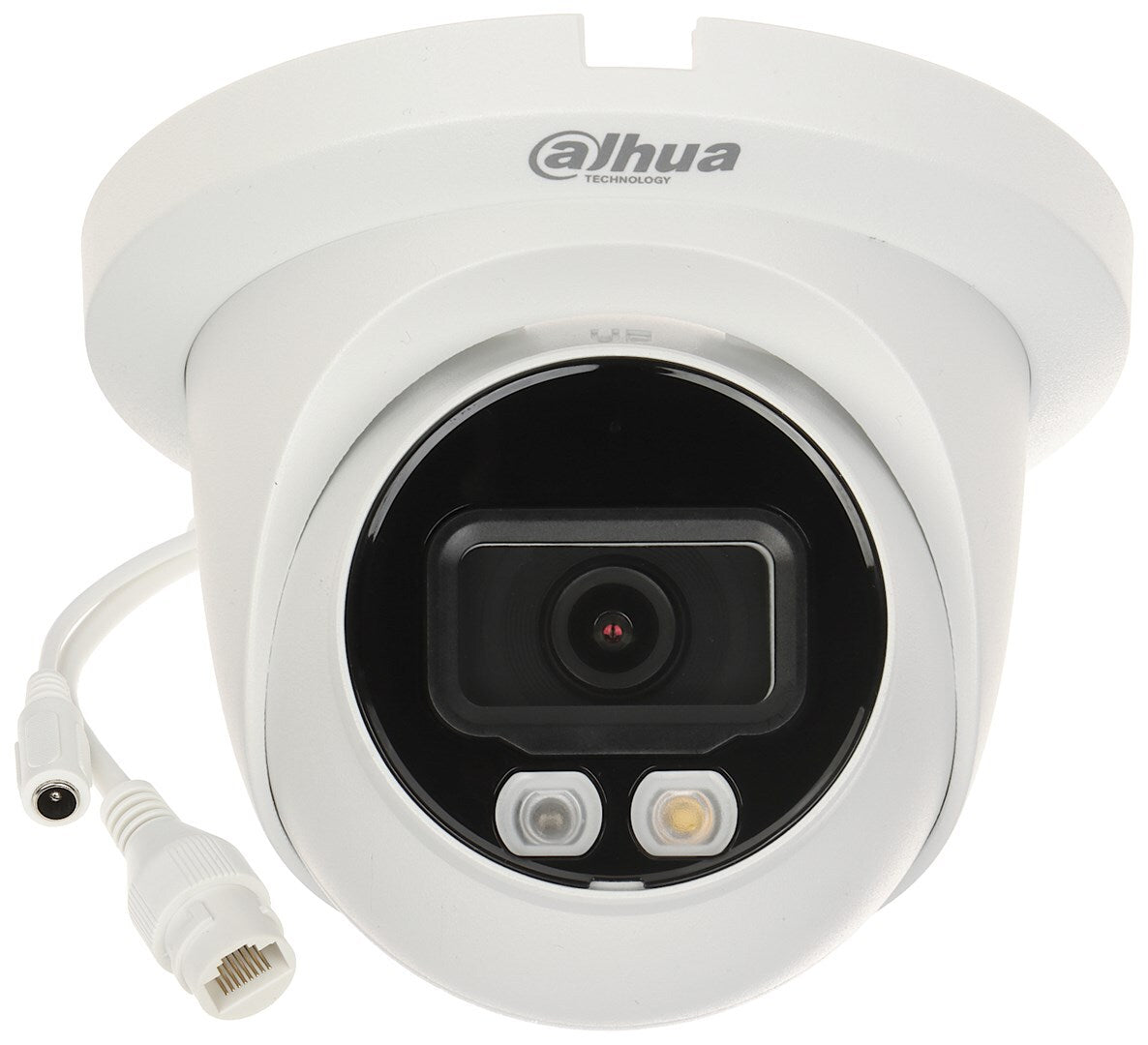

DAHUA IP camera IPC-HDW2549TM-S-il-0280B
by Dahua
€186,99
SKU ACT_IPC-HDW2549TM-S-IL-0280B IP CAMERA D
Design
- Mounting Type: Ceiling
- International Protection Code (IP): IP67
- Product Color: White
- Form Factor: Dome
- Housing Material: Metal, Plastic
Performance
- Power Consumption (Power over Ethernet (PoE)): 5.4 W
- DC Output Voltage: 12
- Maximum Power Consumption: 4.6 W
- Power Source Type: DC, PoE
Operating Conditions
- Storage Temperature (TT): -40 - 60 °C
- Relative Humidity during Operation (HH): 0 - 95 %
- Operating Temperature (TT): -40 - 60 °C
Management Functions
- Web Browser: Yes
- Web-Based Management: Yes
Weight & Dimensions
- Diameter: 12.2 cm
- Height: 99.1 mm
- Weight: 480 g
Network
- Number of Users: 20 Users
- Bluetooth: No
- Quality of Service (QoS) Support: Yes
- Wi-Fi: No
- Network Standards: IEEE 802.3af
- Ethernet Interface Type: Fast Ethernet
System Requirements
- Supported Mobile Operating Systems: iOS, Android
Performance
- Supported Placement: External / Internal
- Signal-to-Noise Ratio (SNR): 56 dB
- Connection Technology: Wired
- Wide Dynamic Range (WDR): 120 dB
- Type: IP Security Camera
Packaging Contents
- Number of Cameras: 1
Audio
- Supported Audio Formats: G.711Mu, PCM, G.711a, G.726
- Built-in Microphone: Yes
Storage
- Internal Storage: 256 MB
- Built-in Hard Drive: No
- ROM Capacity: 128 MB
Camera
- Lens Viewing Angle, Vertical: 58°
- Lens Viewing Angle, Horizontal: 111°
- Camera Shutter Speed: 1/3 - 1/100000 s
- White Balance: Outdoor, Manual, Street Light, Natural, Auto
- Shutter Speed Setting: Auto/Manual
- Panning Range: 0 - 360°
- Lens Viewing Angle, Diagonal: 132°
- Tilting Angle Range: 0 - 78°
- Minimum Illumination: 0.007 lx
Image Sensor
- Number of Sensors: 1
- Optical Sensor Size: 25.4 / 2.7 mm (1 / 2.7)
- Progressive Scan: Yes
- Sensor Type: CMOS
Video
- Total Megapixels: 5 MP
- Gain Control Type: Auto/Manual
- Video Compression Formats: H.264, H.264B, H.265, H.264+, M-JPEG, H.265+, H.264H
- Mirror Function: Yes
- Bitrate Control: Constant Bitrate (CBR)/Variable Bitrate (VBR)
- Frame Rate: 30 fps
