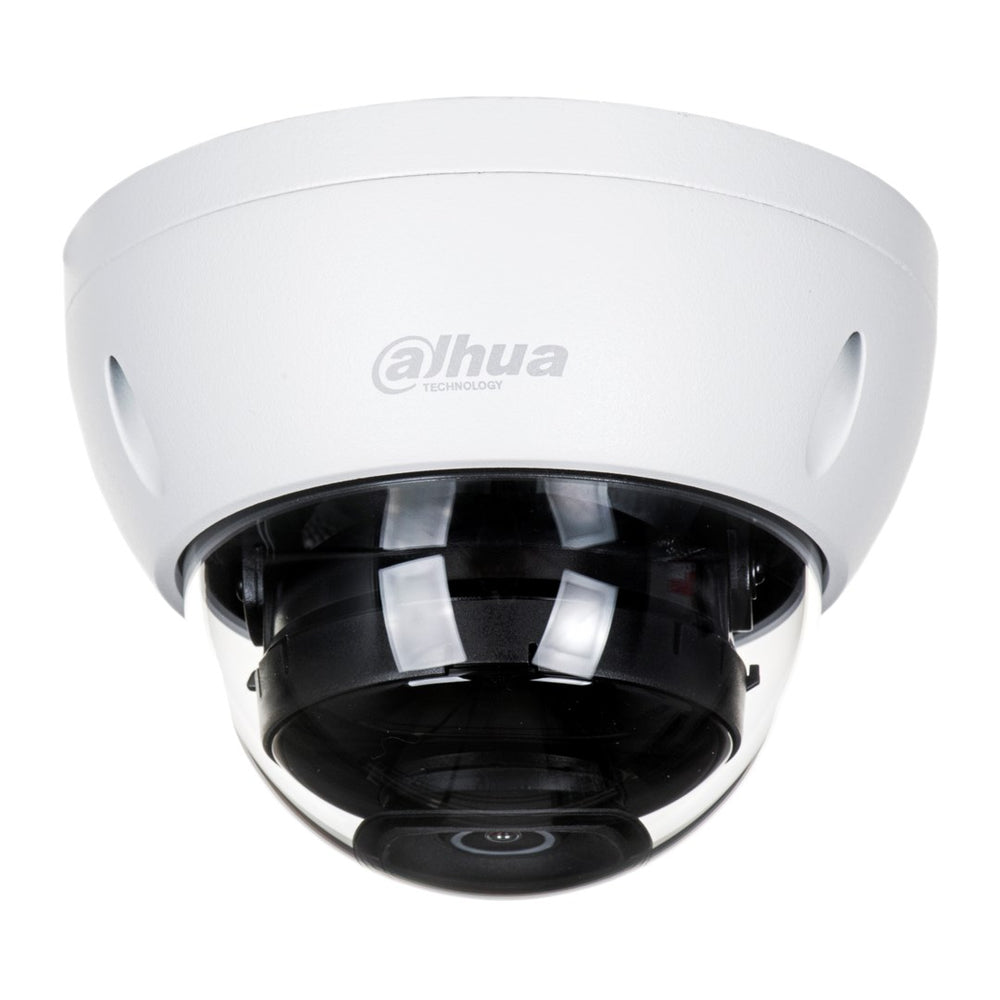

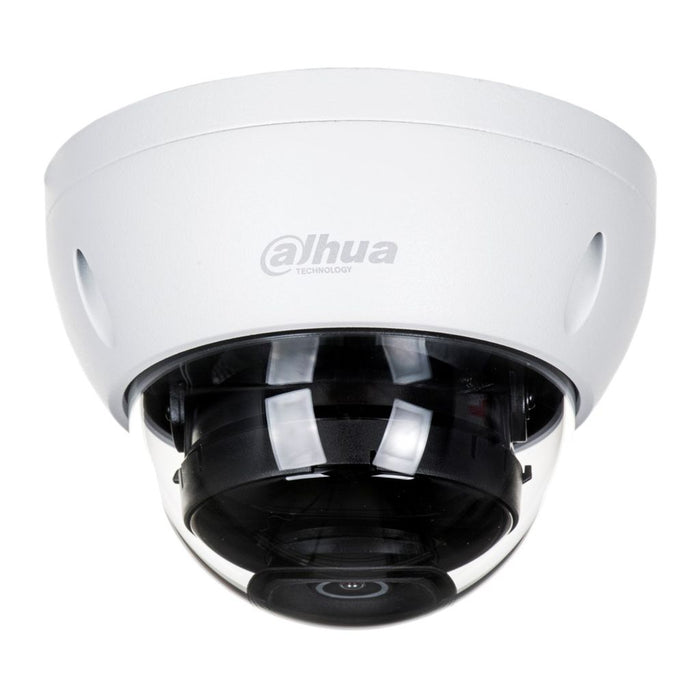

DAHUA IP camera IPC-HDBW1230E-0280B-S5
by Dahua
€103,99
SKU ACT_IPC-HDBW1230E-0 IP CAMERA DAHUA IPC-
- Type:
- IP security camera
- Positioning support:
- Outdoor
- Transmission technology:
- Wired
- Wide Dynamic Range (WDR):
- Yes
- Day/Night mode:
- Yes
- Mounting type:
- Celling/Wall/Pole
- Product color:
- White
- Form factor:
- Dome
- Housing material:
- Metal
- International Protection Rating (IP Code):
- IP67
- IK Code:
- IK10
- Camera pan control:
- Yes
- Camera tilt control:
- Yes
- Pan angle:
- 355
- Viewing angle (horizontal):
- 102
- Viewing angle (vertical):
- 54
- Diagonal lens viewing angle:
- 120
- Tilt angle range:
- 0 - 65
- Pan range:
- 0 - 355
- White balance:
- Auto, Custom Modes, Manual, Natural, Outdoor
- Shutter type:
- Electronic
- Camera shutter speed:
- 1/3 - 1/100000 s
- Sensor type:
- CMOS
- Size of image sensor:
- 25.4 / 2.8 mm (1 / 2.8 inches)
- Full frame method:
- Yes
- Number of effective pixels (H x V):
- 1920 x 1080 pixels
- Distance measurement:
- 38.6 m
- Distance observation:
- 15.4 m
- Distance detection:
- 7.7 m
- Maximum aperture number:
- 2
- Distance determination:
- 3.9 m
- Fixed focal length:
- 2.8 mm
- Minimum focusing distance:
- 0.5 m
- Maximum resolution:
- 1920 x 1080 pixels
- Megapixels total:
- 2 MP
- Video compression formats:
- H.264,H.265,M-JPEG
- Supported graphic resolutions:
- 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
- Supported video modes:
- 240p,480p,576p,720p,960p,1080p
- Up to 30 frames per second:
- 30 fps
- Analog signal format system:
- NTSC,PAL
- Video streaming:
- Yes
- Noise reduction:
- Yes
- Noise reduction technology:
- 3D noise reduction
- Gain control type:
- Auto/Manual
- Privacy masking:
- Yes
- Bitrate control:
- Constant Bitrate (CBR), Variable Bitrate (VBR)
- Backlight compensation:
- Yes
- Highlight compensation (HLC):
- Yes
- Digital Wide Dynamic Range (DWDR):
- Yes
- Region of Interest (ROI) encoding:
- Yes
- Signal-to-noise ratio (SNR):
- 56 dB
- Built-in Ethernet port:
- Yes
- Ethernet interface type:
- Fast Ethernet
- Supported network protocols:
- IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
- Streaming method:
- Multicasting
- RAM memory:
- 64 MB
- ROM capacity:
- 16 MB
- Number of Ethernet LAN ports (RJ-45):
- 1
- Direct current connection (DC):
- Yes
- Video motion detector:
- Yes
- Active tampering alarm:
- Yes
- HTTPS encryption:
- Yes
- Mirror:
- Yes
- Web browser:
- Yes
- Power source:
- Direct current, PoE
- Power consumption (max.):
- 4.4 W
- Power consumption (Power over Ethernet (PoE)):
- 5.1 W
- DC output voltage:
- 12
- Operating temperature:
- -40 - 60 °C
- Storage temperature range:
- -40 - 60 °C
- Supported mobile operating systems:
- Android, iOS
- Height:
- 81 mm
- Diameter (mm):
- 11 cm
- Weight:
- 350 g
- Package weight:
- 500 g
- Number of cameras:
- 1
- User manual:
- Yes
.
